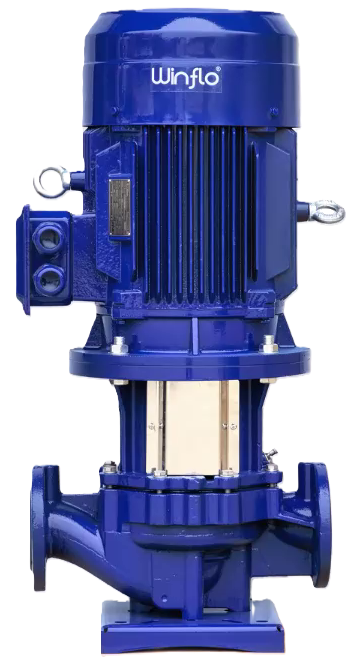

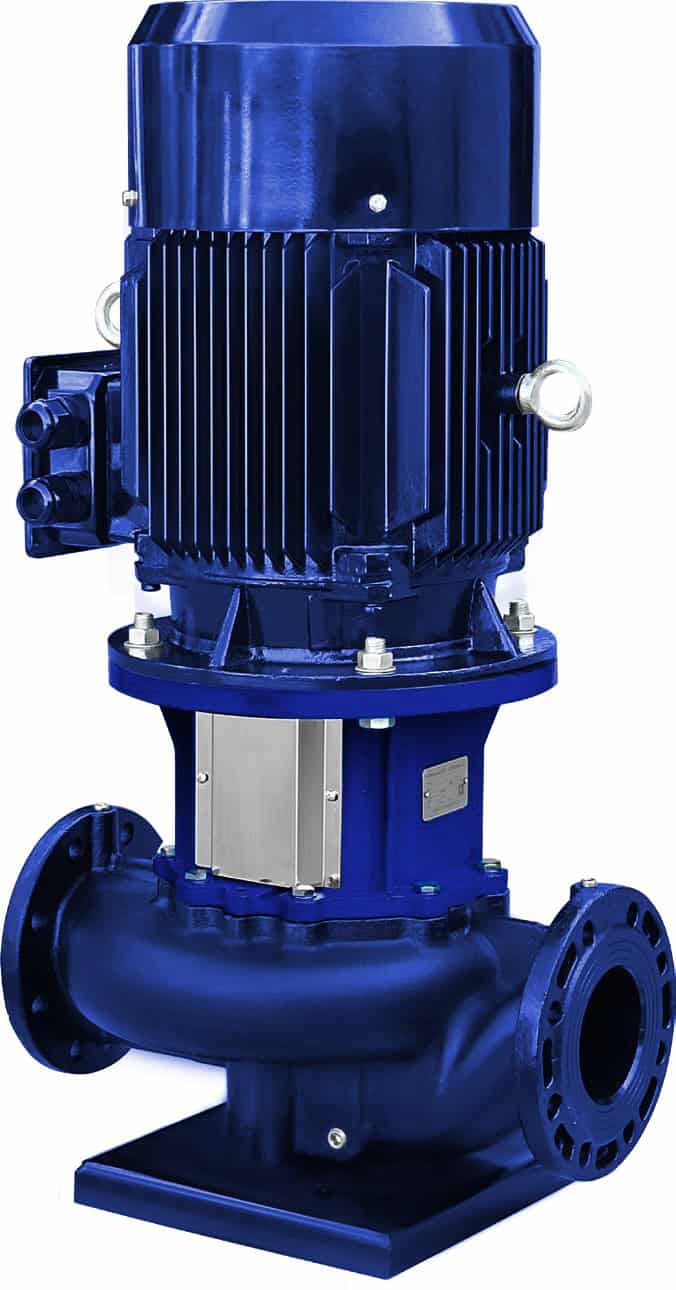

Vertical In-Line Split Coupled Centrifugal pump (VLW Series)
- Non-Self priming, single stage vertical in-line split coupled pump with inline inlet and outlet ports.
- Rigid split coupled design allows easy external access to mechanical seal without disturbing motor or pipework.
- Internal mechanical seal with self-flushed design eliminates external flush lines and offers maintenance free design with improved resistance to dirt, debris, and abrasive water conditions compared to conventional split coupled pumps with outside balanced mechanical seals.
- Ductile iron casing with PN16 & PN25 configurations.
- MEI ≥ 0.4 (regulation EU N.547/2012)
Application
- Water supply
- Hydronic/HVAC circulation
- Industrial liquid transfer
- Irrigation
Features & Benefits
- Pumps offer flow rates up to 1300 m3/h and up to 85 m head.
- 2 pole / 4 pole range.
- Asynchronous induction motors with IE3, IE4 and IE5 efficiency levels from 1.5 kW to 200 kW.
- Robust and Compact design.
- Designed for Continuous Operation.
- Customized materials of construction and motor options available upon request.
Material of Construction
-
Pump Body Casing: Ductile Iron
-
Impeller: AISI 316L (default), AISI 304, cast iron
-
Shaft: AISI 316L (default), AISI 420, AISI 431
-
Mechanical Seal: SiC-SiC-EPDM (default), SiC-graphite-EPDM, SiC-SiC-FKM
Motor Details
-
Totally Enclosed Fan Cooled asynchronous induction motor.
-
Degree of protection: IP55, Insulation Class: F
- Efficiency class: IE3 / IE4 / IE5
-
Suitable for power supply: AC, 50Hz, 3-Phase 400v
Operating Limits
-
Maximum working pressure: 16 bar (default), 25 bar
-
Minimum & Maximum Liquid temperature: -25 to +110°C.
-
Ambient Temperature: -20 to +40° C.
-
Service/Duty type: S1 (Continuous)
Standards & Certifications
- CE
