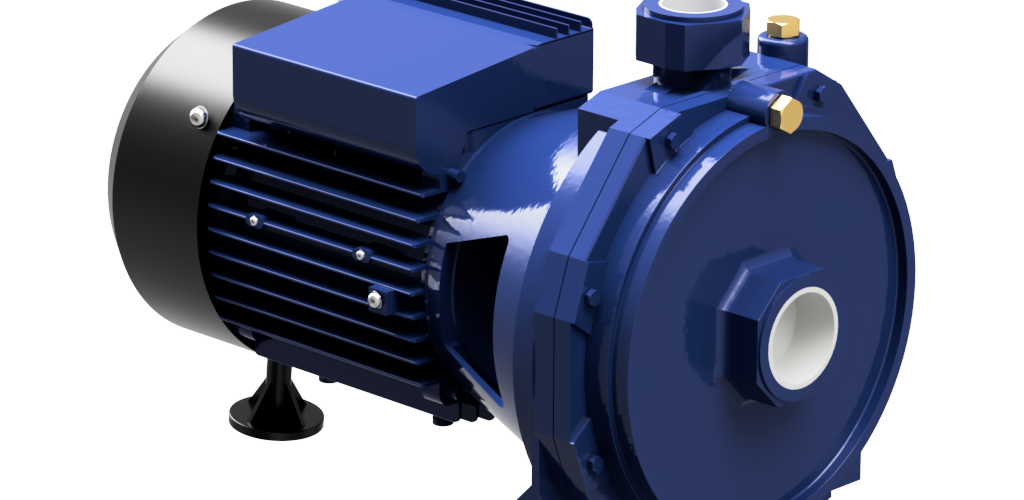

Twin impeller Cast Iron Centrifugal pump (2CCW1 Series)

////Twin impeller Cast Iron Centrifugal pump (2CCW1 Series)

Twin impeller Cast Iron Centrifugal pump (2CCW1 Series)

  • Close coupled twin impeller centrifugal pump.
  • Axial inlet port, radial outlet port.
  • Inbuilt thermal overload protection for single phase models.
Data Sheet
Inquiry?
Support
1 Step 1

Please enter your email for downloading the product document.

reCaptcha v3
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

Models

MODEL POWER (P2) Q m3/h 0 1.8 3.6 5.4 7.2
Single Phase Three Phase kW HP l/min 0 30 60 90 120
2CCW1 100 2CCW1 100 T 0.75 1 H meter 32 30 24 11
2CCW1 150 2CCW1 150 T 1.1 1.5 41 39 32 18
2CCW1 200 2CCW1 200 T 1.5 2 46 43 36 24 8
2CCW1 300 2CCW1 300 T 2.2 3 55 50 42 31 18
  • Q= Flow Rate
  • H= Total manometric head
  • *Three phase models available on request

Overview

Application

  • Domestic water transfer and pressure boosting
  • Garden irrigation systems
  • Civil and industrial use
  • Water circulation

Features & Benefits

  • Robust and Compact design.
  • Designed for Continuous Operation.
  • Can adopt to smart controls integration. Energy efficient for a longer period.

Specifications

Technical Information

  • Maximum working pressure: 10 bar
  • Maximum Liquid temperature: Up to +90°C.
  • Maximum Ambient Temperature: Up to +50° C.
  • Service/Duty type: S1 (Continuous)

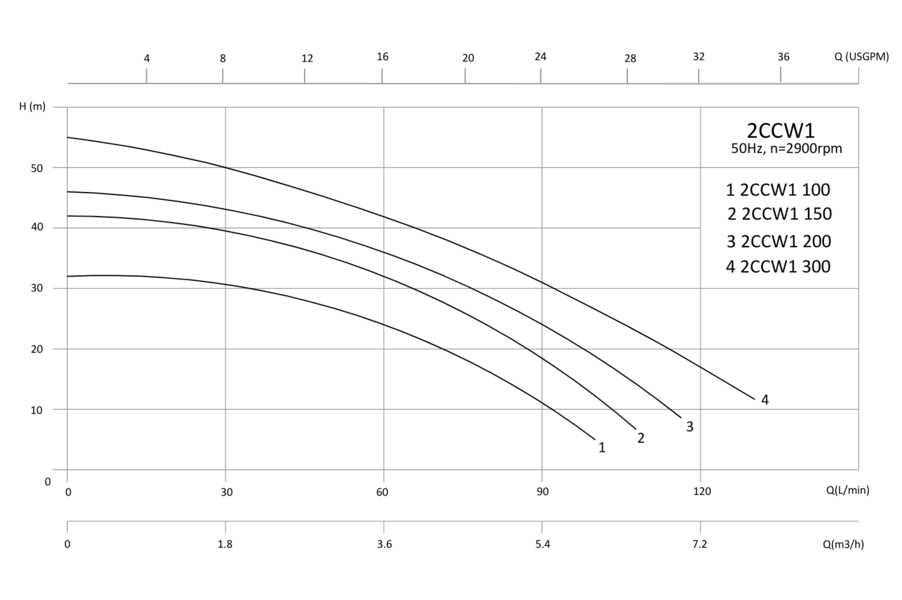

Performance Curves

Accessories and Spare Parts

Accessories

Coming soon.

Spare Parts

Coming soon.
