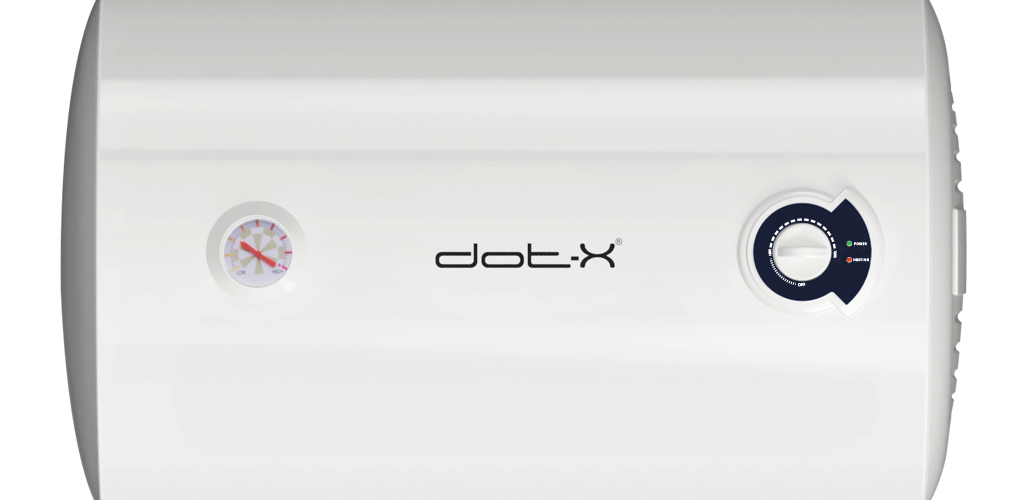

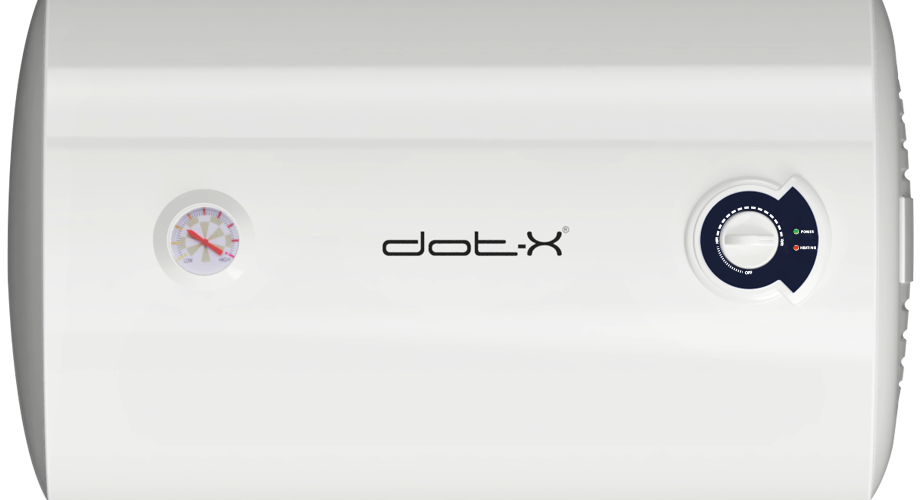

Storage Electric Water Heater (Vita series)
- VITA series Electric water heaters are horizontal mounting type with higher efficiency and better energy savings.
- Double protection with Thermal cut-out and safety valve.
- Longer life in toughest water conditions with high quality enameled steel tank.
- Long lasting performance with stainless steel heating element.
- Ergonomically and aesthetically design water heater.
Application
-
Residential
Features
- Stainless steel Calcium proof Heating Element
- Adjustable Thermostat with special capillary type sensor, enabling effective and precise temperature setting and built-in safety cut-off device
- Dual Magnesium Anode for better and long protection against corrosion
- HCFC-Free high-density polyurethane foam for optimum insulation
Benefits
- Flange connection for easy periodical maintenance
- Large temperature gauge dial and thus easy reading of temperature
- Outer Casing has weather resistant special polymer paint
- Factory tested in-line safety valve with drain cock and safety screw and avoiding overheating
Data Table
| TECHNICAL DATA | Unit | DT-50H-S01 | DT-80H-S01 | DT-100H-S01 |
|---|---|---|---|---|
| Mounting Type | Horizontal | Horizontal | Horizontal | |
| Capacity | Litres | 50L | 80L | 100L |
| Power | watts | 1500 | 1500 | 1500 |
| Voltage | V | 220 | 220 | 220 |
| Max. Working Pressure | Bar | 8 | 8 | 8 |
| Max. Working Temperature | deg C | 75 | 75 | 75 |
| Test Pressure | Bar | 15 | 15 | 15 |
| Inner Tank Steel Thickness | mm | 1.8 | 1.8 | 1.8 |
| Insulation Thickness (Avg.) | mm | 18 | 18 | 18 |
| Net Weight | Kgs | 15 | 22 | 26 |
| Gross Weight | Kgs | 17 | 25 | 29 |
| Box Dimensions | mm | 445X435X685 | 495X495X820 | 495X495X970 |
