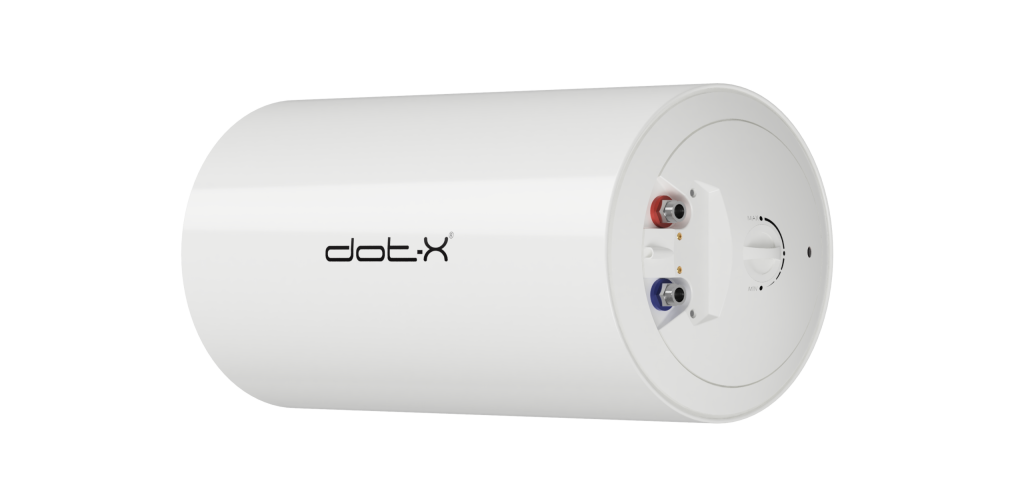

Residential Electric Water Heaters (Vita Slim Series)
-
Slim design facilitates ease in installation and enhances the ambience of the space.
-
Enamel coated internal surface according to DIN 4753.3 Norm.
-
Adjustable Thermostat with precise temperature setting
-
HCFC-Free high-density polyurethane foam for optimum insulation.
-
Stainless steel Calcium proof Heating Element.
| Technical Data (X-Axis)/Model (Y-Axis) | DT-30H-S01S | DT-50H-S01S | DT-80H-S01S |
|---|---|---|---|
| Mounting Type | Horizontal | Horizontal | Horizontal |
| Capacity (L) | 30 L | 50 L | 80 L |
| Power (Watts) | 1200 W | 1200 W | 1200 W |
| Voltage (V) | 220 V | 220 V | 220 V |
| Max. Working Pressure (Bar) | 8 Bar | 8 Bar | 8 Bar |
| Max. Working Temperature (°C) | 75 °C | 75 °C | 75 °C |
| Test Pressure (Bar) | 15 Bar | 15 Bar | 15 Bar |
| Inner Tank Steel Thickness (mm) | 1.5 mm | 1.5 mm | 1.5 mm |
| Average Insulation Thickness (mm) | 18 mm | 18 mm | 18 mm |
| Net Weight (Kgs) | 13.3 Kgs | 16.7 Kgs | 24.1 Kgs |
Application
-
Residential.
Features
-
Enamel coated internal surface according to DIN 4753.3 Norm.
-
Built-in safety thermal cut-off device.
-
HCFC-Free high-density polyurethane foam for optimum insulation.
-
Water proof Grade of IPX4
-
Stainless steel Calcium proof Heating Element.
-
ON/OFF indicator lamp.
Benefits
- Slim design facilitates installation within the limited space enhancing the ambience of the area.
- Adjustable Thermostat with special capillary type sensor, enabling effective and precise temperature setting
- Factory tested in-line safety valve with drain cock to avoid overheating.
