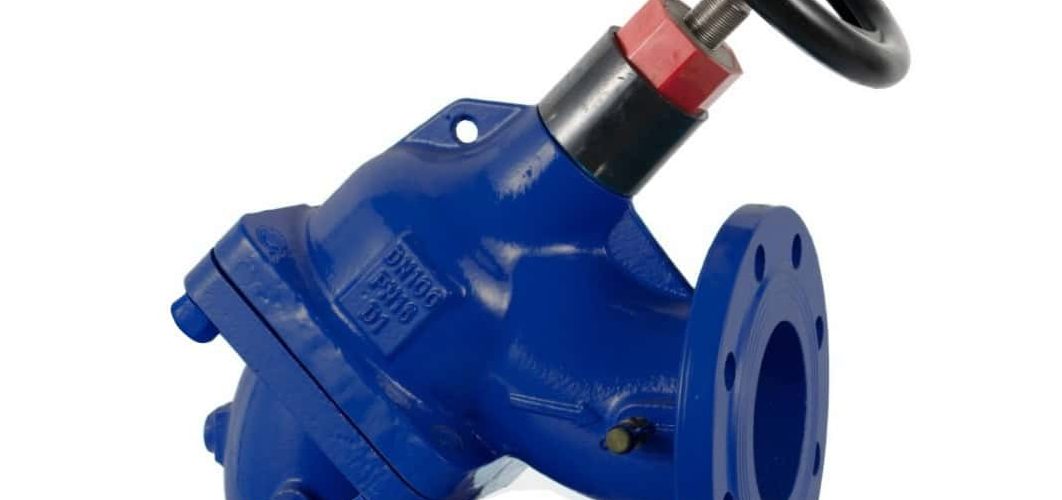

Triple Duty Angle Valve (TDVA)
- 4 in 1 valve: Shut-off valve, balancing valve, non-slam check valve and long radius elbow.
- Field convertible to a right angle valve.
- Direct mounting in horizonal or vertical positions.
Application
-
Industrial
-
Irrigation
-
Commercial
-
Oil
Features
- Integrated position indicator on valve handwheel base for flow measurement estimation.
- Cast supporting pad on valve body to allow easy mounting of support foot.
- Flow and temperature measurement ports and drain connection are integrated into side of the valve.
General
- Sizes: DN65 to DN300
-
Max Working Pressure: 16 Bar, 25 Bar.
- Working Temperature: -20° C to 120° C
- Connections Flanged (as per BS EN1092-2)
Standards
- Flange Connection Standard: BS EN1092-2
- Pressure Test Standard: BS EN12266-1
