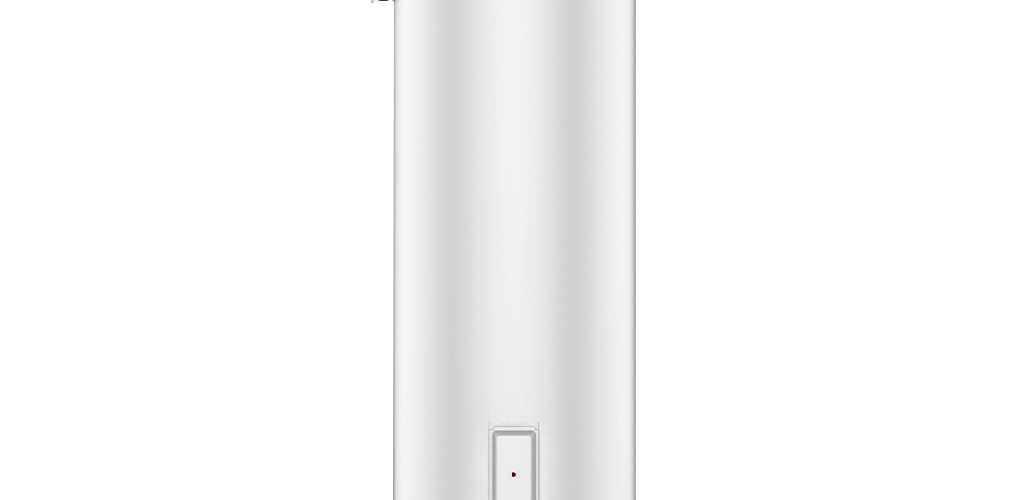

Residential Electric Water Heaters (Vertical Floor Mount, EVRE Series)
- EVRE Series Electric water heaters are vertical mounting type with high efficiency and better energy savings.
- Double protection with Thermal cut-out and safety valve.
- Longer life in toughest water conditions with high quality enameled steel tank.
- Long lasting performance with INCOLOY 840 heating element.
- Ergonomically and aesthetically designed water heater.
Application
-
Residential-Hot water
Features
- EVRE Series Electric Water Heaters are available in various capacities from 150L to 500L to suit all types of residential needs.
- Maximum Operating Pressure is 8 bar and Test pressure is 12 Bar in conformance to ASME Code Section IV.
- Enameled steel inner tank with glass finish.
- HCFC-Free high-density polyurethane foam for optimum insulation.
Benefits
- Incoloy 840 Heating Element with adjustable thermostat sensor, enabling effective and precise temperature setting and built-in safety cut-off device.
- Equipped with Magnesium Anode for better and long protection against corrosion.
- Factory tested in-line safety valve with drain cock and safety screw and avoiding overheating
Data Table
| Mode Name | Capacity in L |
Dimensions in mm |
Connection in mm |
Power in Kilowatts |
Voltage in Volts |
No. of Heating Elements | Insulation Thickness in mm |
Net Weight in Kg | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | Recommended | Optional | |||||||
| EVRE 150 | 150 | 1483 | 450 | 1340 | 154 | 95 | NPT 3/4” | 1.5 | 2/3 | 220 | 1 | 40 | 57 |
| EVRE 200 | 200 | 1516 | 520 | 1350 | 163 | 100 | NPT 3/4” | 2 | 1.5/3/4/5 | 220 | 1 | 40 | 69 |
| EVRE 300 | 300 | 1520 | 620 | 1320 | 178 | 100 | NPT 3/4” | 3 | 1.5/2/4/5/6 | 220 | 1 | 40 | 85 |
| EVRE 400 | 400 | 1576 | 710 | 1373 | 210 | 100 | NPT 3/4” | 4 | 1.5/2/3/5/6 | 220 | 1 | 50 | 113 |
| EVRE 500 | 500 | 1926 | 710 | 1722 | 210 | 100 | NPT 3/4” | 5 | 1.5/2/3/4/6 | 220 | 1 | 50 | 128 |
